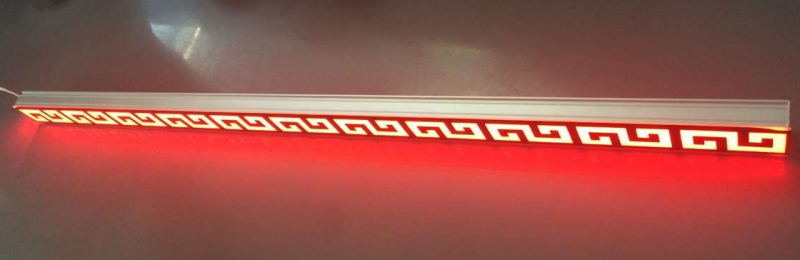

Masking Led Tube Light
| ● Product drawing(Unit: mm) | ||||
 |
||||
| ●Optical data | ||||
| Items |
Parameters |
|||
| LED source | 5050SMD | |||
| Quantity per meter | 60PCS | |||
| Luminous efficacy | ≥80Lm/w | |||
| CRI | Ra﹥70 | |||
| ●Technical data | ||||
| Number | Items | Unit | Parameters | |
| 1 | Nominal voltage | V | DC12 | |
| 2 | Operate Frequency | Hz | 50/60 | |
| 3 | Working Voltage | V | 12 | |
| 4 | Working Current | mA | 900 | |
| 5 | Power | W | 10.8 | |
| 6 | Working temperature | ℃ | -25~+50℃ | |
| 7 | Storage temperature | ℃ | -25～ +50℃ | |
| 8 | IP grade | IP20 | ||
| 9 | Net weight | Kg | 0.715 | |

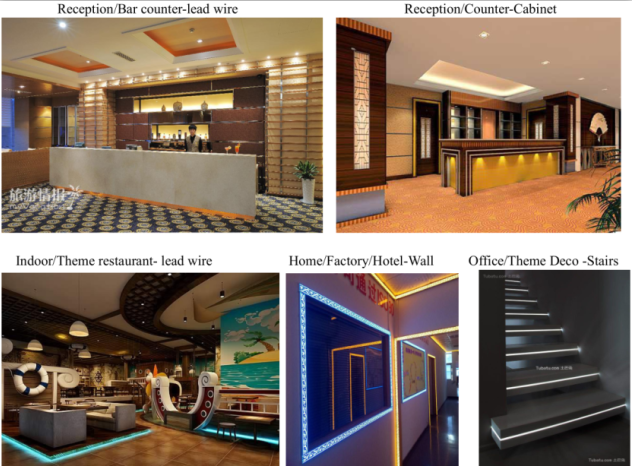

● Application cases：
Design catalog 2
Personal/Scene/Corporate Logo design can be customized

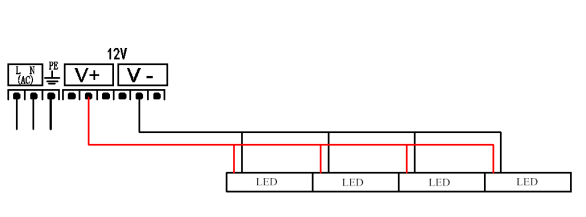

● Connection way:
Note: At most 3 meters can be connected in one power line.
| Size (CM) | QTY (PCS) | Weight (KG) | ||
| L | W | H | 1 | 0.855 |
| 100.7 | 6.6 | 3.3 | ||
*Outer carton
| Size (CM) | QTY (PCS) | Weight (KG) | ||
| L | W | H | 18 | 17.5 |
| 102.7 | 21.5 | 22 | ||
● Attention:
1. The above data is for reference.
2. Read the manual carefully before use.
3. Turn off the power switch during connecting.
4. Do not touch the metal case outside of the product when the lamp is working.
5. Avoid the impact of humidity to the lamp.
1. The above data is for reference.
2. Read the manual carefully before use.
3. Turn off the power switch during connecting.
4. Do not touch the metal case outside of the product when the lamp is working.
5. Avoid the impact of humidity to the lamp.
