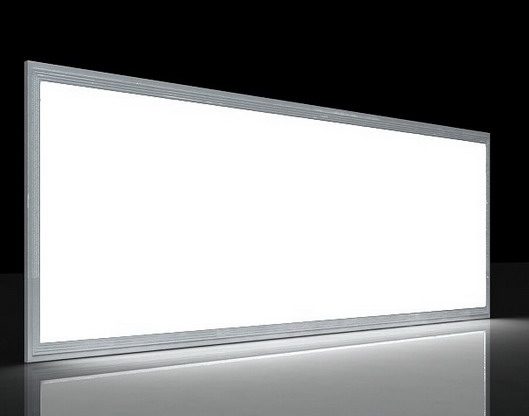

LED Panel Light
Product Description:
Features:
* Special different view angles, mixing lighting design. Great light evenness, no dark zones
* No start-up time, no flickering, no humming.
* 70%-80% savings on lighting cost. Special design. It's lighter than the traditional panel light.
* With high transmittance of light guide plate to make the light even and high color rendering index.
* With Aluminum base material and reasonable structure to have a better heat sink. Ceiling mounted spring easy for replacing of traditional lights.
* High stability and low ripple improves the LED lamp's light efficiency, and decreases the luminous decay.
* The products have passed the long-time low temperature and high temperature testing.
* Wide voltage design, and it is universal applied in all countries.
* Dimmable available.
* Different sizes: 300*300,300*600,300*1200,600*600,600*1200 etc. All available
* 36w, 48w, 54w, 72w, all kinds of wattage can be supplied
Applications:
| Item No.: SH-PL1206 | Power: 54W / 72W | |||||
| Optical Spec. | Electrical Spec. | General Spec. | ||||
| LED Brand | Hongli | Input Voltage | AC85-275V | Materials | Aluminum | |
| Chip Brand | Epistar | Power Factor | >0.9 | Waterproof | IP40 | |
| LED Type | SMD2835 | Frequency | 50-60Hz | Operation Temp. | -30° ~ 50° C | |
| Color Temp. | 2700-6500K | Driver Efficiency | >85% | Working/Storage Humidity | <80RH | |
| CRI. | 80 Ra | Driver Brand | Ledfriend | Storage Temp. | -40° ~ 80° C | |
| Total Efficiency | 85-100lm/W | Capatitor Origin | Taiwan/Japan | Lifespan | 50,000 hrs | |
| Beam Angle | 120° | THD | <10% | Warranty | 3 Years | |
Features:
* Special different view angles, mixing lighting design. Great light evenness, no dark zones
* No start-up time, no flickering, no humming.
* 70%-80% savings on lighting cost. Special design. It's lighter than the traditional panel light.
* With high transmittance of light guide plate to make the light even and high color rendering index.
* With Aluminum base material and reasonable structure to have a better heat sink. Ceiling mounted spring easy for replacing of traditional lights.
* High stability and low ripple improves the LED lamp's light efficiency, and decreases the luminous decay.
* The products have passed the long-time low temperature and high temperature testing.
* Wide voltage design, and it is universal applied in all countries.
* Dimmable available.
* Different sizes: 300*300,300*600,300*1200,600*600,600*1200 etc. All available
* 36w, 48w, 54w, 72w, all kinds of wattage can be supplied
Applications:
- Factories, warehouses, offices lighting,
- Supermarket lighting
- Schools, residential area lighting
- Hotels, conference, Meeting rooms lighting
- Hospital lighting etc
