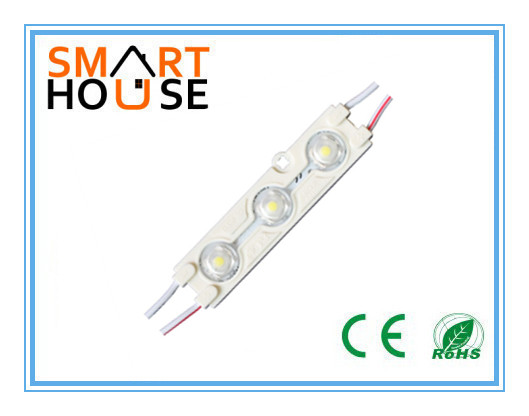

Injection LED Module
Constant current 3leds module
SH-3XJ5050L
Product Description:
Electrical parameters
Optical Parameters
Features
1. Highest brightness: take TOP 5050SMD LED as lighting source, no shadow, low thermal resistance, low brightness declines.
2. Aluminum pcb board with optical lens, better heat dissipation and large lighting angle
3. Extended lifespan: more than 50000 hours
4. Energy saving: low consumption, free maintenance, friendly environment.
5. Waterproof grade: IP65, injection outer cover, beautiful and unique appearance.
6. Low input voltage: DC12V, reliable and safe.
7. Easy installation: can be easily installed with double-sided sticking tape and connectors.
8. This module could be linked up to 40pcs modules, more than 40pcs is strictly prohibited.
Applications
* Company logo back lighting
* KTV/Market/Hotel/LED cabinet
* Advertisement signs Back lighting
* Illuminated Channel Letter Back lighting
* Advertisement Light boxes and Billboards Back lighting
* Landscape, commercial, home and stage decoration
Our Advantages
1. High quality: Top led lighting source, strictly production process, aging 24hours before delivery to customers
2. Competitive price: factory direct price
3. Fast delivery: within 7days after payment
4. Best after sales service: emails will be replied within 24 hours
5. Well-trained and experienced technical staff to solve all your questions
6. OEM & ODM acceptable
7. Small trial orders for testing are welcome
Electrical parameters
| Item number: | SH-3XJ5050L |
| Item name | 5050SMD 3leds module |
| Input voltage | DC12V |
| Power | 0.72W |
| LED Number | 3PCS |
| Max Connection Qty | 20PCS |
| Waterproof Grade | IP67 |
| Cover material | PVC |
| Size | 62*15mm |
| Drive mode | Constant current drive |
| Working temperature | -20~+60℃ |
| Stock temperature | -40~+80℃ |
| Warranty | 4 years |
| Lifespan | 50000 hours |
| Certificate | CE & RoHS |
Optical Parameters
| LED | Color | Wave length /Color temperature |
Lumen (Single Module) | Angle |
| Top 5050smd | C/W | ＞7000K | 22 lm±10% | 120° |
| W/W | 2800-3200K | 22 lm±10% | 120° | |
| N/W | 5500-6500K | 22 lm±10% | 120° | |
| R | 620-630nm | 5.4 lm±10% | 120° | |
| G | 520-530nm | 11.4 lm±10% | 120° | |
| B | 465-475nm | 3.6 lm±10% | 120° | |
| Y | 585-595nm | 4.5 lm±10% | 120° |
Features
1. Highest brightness: take TOP 5050SMD LED as lighting source, no shadow, low thermal resistance, low brightness declines.
2. Aluminum pcb board with optical lens, better heat dissipation and large lighting angle
3. Extended lifespan: more than 50000 hours
4. Energy saving: low consumption, free maintenance, friendly environment.
5. Waterproof grade: IP65, injection outer cover, beautiful and unique appearance.
6. Low input voltage: DC12V, reliable and safe.
7. Easy installation: can be easily installed with double-sided sticking tape and connectors.
8. This module could be linked up to 40pcs modules, more than 40pcs is strictly prohibited.
Applications
* Company logo back lighting
* KTV/Market/Hotel/LED cabinet
* Advertisement signs Back lighting
* Illuminated Channel Letter Back lighting
* Advertisement Light boxes and Billboards Back lighting
* Landscape, commercial, home and stage decoration
Our Advantages
1. High quality: Top led lighting source, strictly production process, aging 24hours before delivery to customers
2. Competitive price: factory direct price
3. Fast delivery: within 7days after payment
4. Best after sales service: emails will be replied within 24 hours
5. Well-trained and experienced technical staff to solve all your questions
6. OEM & ODM acceptable
7. Small trial orders for testing are welcome
