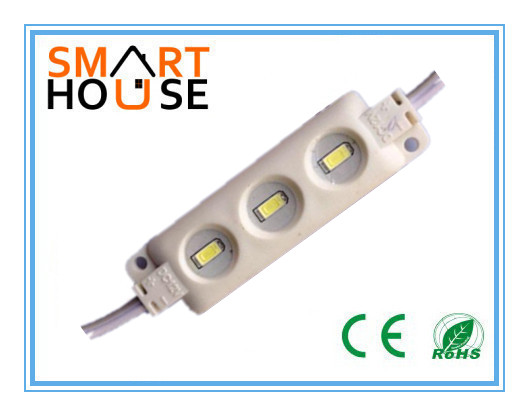

Injection LED Module
Product Description
Electrical parameters
Optical Parameters
Features:
1. Highest brightness: take TOP 5630SMD LED as lighting source, no shadow, low thermal resistance, low brightness declines.
2. Aluminum pcb board, better heat dissipation
3. Extended lifespan: more than 50000 hours
4. Energy saving: low consumption, free maintenance, friendly environment.
5. Waterproof grade: IP65, injection outer cover, beautiful and unique appearance.
6. Low input voltage: DC12V, reliable and safe.
7. Easy installation: can be easily installed with double-sided sticking tape and connectors.
8. With series-parallel connection circuit for LED PCB, 20pcs modules are connected to one string and each module can be cut individually.
Applications
* Company logo back lighting
* KTV/Market/Hotel/LED cabinet
* Advertisement signs Back lighting
* Illuminated Channel Letter Back lighting
* Advertisement Light boxes and Billboards Back lighting
* Landscape, commercial, home and stage decoration
Our Advantages
1. High quality: Top led lighting source, strictly production process, aging 24hours before delivery to customers
2.Competitive price: factory direct price
3. Fast delivery: within 7days after payment
4. Best after sales service: emails will be replied within 24 hours
5. Well-trained and experienced technical staff to solve all your questions
6. OEM & ODM acceptable
7. Small trial orders for testing are welcome
Electrical parameters
| Item number: | SH-3XJ5630 | SH-4XJ5630 |
| Item name | 5630SMD 3leds module | 5630SMD 3leds module |
| Input voltage | DC12V | DC12V |
| Power | 1.5W | 2.0W |
| LED Number | 3PCS | 4PCS |
| Max Connection Qty(PCS) | 20 | 20 |
| Waterproof Grade | IP65 | IP65 |
| Cover material | PVC | PVC |
| Size | 78*15mm | 55*33mm |
| Drive mode | Constant voltage drive | Constant voltage drive |
| Working temperature | -20~+60℃ | -20~+60℃ |
| Stock temperature | -40~+80℃ | -40~+80℃ |
| Warranty | 2years | 2years |
| Lifespan | 50000 hours | 50000 hours |
| Certificate | CE & RoHS | CE & RoHS |
Optical Parameters
| LED | Color | Wave length /Color temperature |
Lumen (Single Module) | Angle |
| Top 5630smd | C/W | ＞7000K | 50 lm±10% | 120° |
| W/W | 2800-3200K | 50 lm±10% | 120° | |
| N/W | 5500-6500K | 50 lm±10% | 120° | |
| R | 620-630nm | 10 lm±10% | 120° | |
| G | 520-530nm | 25 lm±10% | 120° | |
| B | 465-475nm | 6 lm±10% | 120° | |
| Y | 585-595nm | 7 lm±10% | 120° |
Features:
1. Highest brightness: take TOP 5630SMD LED as lighting source, no shadow, low thermal resistance, low brightness declines.
2. Aluminum pcb board, better heat dissipation
3. Extended lifespan: more than 50000 hours
4. Energy saving: low consumption, free maintenance, friendly environment.
5. Waterproof grade: IP65, injection outer cover, beautiful and unique appearance.
6. Low input voltage: DC12V, reliable and safe.
7. Easy installation: can be easily installed with double-sided sticking tape and connectors.
8. With series-parallel connection circuit for LED PCB, 20pcs modules are connected to one string and each module can be cut individually.
Applications
* Company logo back lighting
* KTV/Market/Hotel/LED cabinet
* Advertisement signs Back lighting
* Illuminated Channel Letter Back lighting
* Advertisement Light boxes and Billboards Back lighting
* Landscape, commercial, home and stage decoration
Our Advantages
1. High quality: Top led lighting source, strictly production process, aging 24hours before delivery to customers
2.Competitive price: factory direct price
3. Fast delivery: within 7days after payment
4. Best after sales service: emails will be replied within 24 hours
5. Well-trained and experienced technical staff to solve all your questions
6. OEM & ODM acceptable
7. Small trial orders for testing are welcome
