Epoxy LED Module

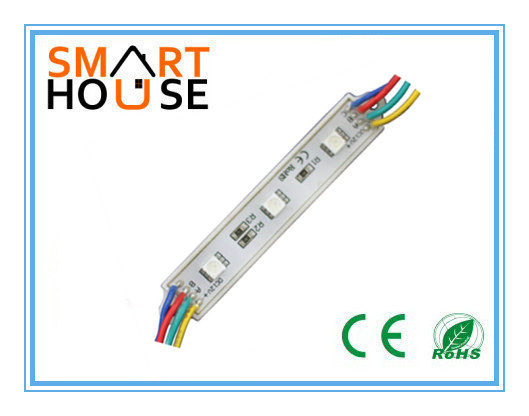

SMD5050 RGB seven color module
SH-3XE5050RGB
Product Description
Electrical parameters
Optical Parameters
Features
1. Present 7 colors (red, blue, purple, green, yellow, cyan, white), 7 colors jumping, 7 colors gradient etc.
2. Highest brightness: take TOP 5050SMD LED as lighting source, no shadow,low thermal resistance,low brightness declines.
3. Extended lifespan: more than 50000 hours
4. Energy saving: low consumption, free maintenance, friendly environment.
5. Waterproof grade: IP67, The LEDs are totally covered by epoxy resin. LED Modules can operate normally in cloudy, rainy, desert, and snowy weather conditions and pool.
6. Low input voltage: DC12V, reliable and safe.
7. Easy installation: can be easily installed with double-sided sticking tape and connectors.
Applications
* Company logo back lighting
* KTV/Market/Hotel/LED cabinet
* Advertisement signs Back lighting
* Illuminated Channel Letter Back lighting
* Advertisement Light boxes and Billboards Back lighting
* Landscape, commercial, home and stage decoration
Our Advantages
1. High quality: Top led lighting source, strictly production process, aging 24hours before delivery to customers
2.Competitive price: factory direct price
3. Fast delivery: within 7days after payment
4. Best after sales service: emails will be replied within 24 hours
5. Well-trained and experienced technical staff to solve all your questions
6. OEM & ODM acceptable
7. Small trial orders for testing are welcome
Electrical parameters
| Item number: | SH-3XE5050RGB |
| Item name | Seven color led module |
| Input voltage | DC12V |
| Power | 0.72W |
| LED Number | 3leds |
| Control type | Without SD card control |
| Max Connection Qty(PCS) | 20pcs |
| Waterproof Grade | IP67 |
| Cover material | PVC |
| Size | 78*15mm |
| Drive mode | Constant voltage drive |
| Working temperature | -20~+60℃ |
| Stock temperature | -40~+80℃ |
| Warranty | 2years |
| Lifespan | 50000 hours |
| Certificate | CE & RoHS |
Optical Parameters
| LED | Color | Wave length /Color temperature |
Lumen per led | Angle |
| Top 5050SMD RGB | R | 620-635nm | 4.5 lm±10% | 120° |
| G | 520-535nm | 10.5 lm±10% | ||
| B | 465-475nm | 2 lm±10% |
Features
1. Present 7 colors (red, blue, purple, green, yellow, cyan, white), 7 colors jumping, 7 colors gradient etc.
2. Highest brightness: take TOP 5050SMD LED as lighting source, no shadow,low thermal resistance,low brightness declines.
3. Extended lifespan: more than 50000 hours
4. Energy saving: low consumption, free maintenance, friendly environment.
5. Waterproof grade: IP67, The LEDs are totally covered by epoxy resin. LED Modules can operate normally in cloudy, rainy, desert, and snowy weather conditions and pool.
6. Low input voltage: DC12V, reliable and safe.
7. Easy installation: can be easily installed with double-sided sticking tape and connectors.
Applications
* Company logo back lighting
* KTV/Market/Hotel/LED cabinet
* Advertisement signs Back lighting
* Illuminated Channel Letter Back lighting
* Advertisement Light boxes and Billboards Back lighting
* Landscape, commercial, home and stage decoration
Our Advantages
1. High quality: Top led lighting source, strictly production process, aging 24hours before delivery to customers
2.Competitive price: factory direct price
3. Fast delivery: within 7days after payment
4. Best after sales service: emails will be replied within 24 hours
5. Well-trained and experienced technical staff to solve all your questions
6. OEM & ODM acceptable
7. Small trial orders for testing are welcome
